Handling Overlapping Labels in Tableau: A Simple Staggered Approach
When working with bar charts in a tight dashboard layout, labels can easily become cluttered. Long labels or a high number of bars often lead to overlapping text, which makes the visual harder to read and less effective.
Why offset labels?
One practical solution is to stagger the labels using an offset. This creates a cleaner layout without needing to change the overall design of the chart. Overlapping labels reduce readability and make it harder for users to understand the data quickly. By shifting the position of labels slightly for certain bars, we can create more breathing room between them. The end result is a chart that’s easier to follow.
How to create staggered labels in Tableau
Here’s a step-by-step approach using an index and modulo calculation to apply label offsets:

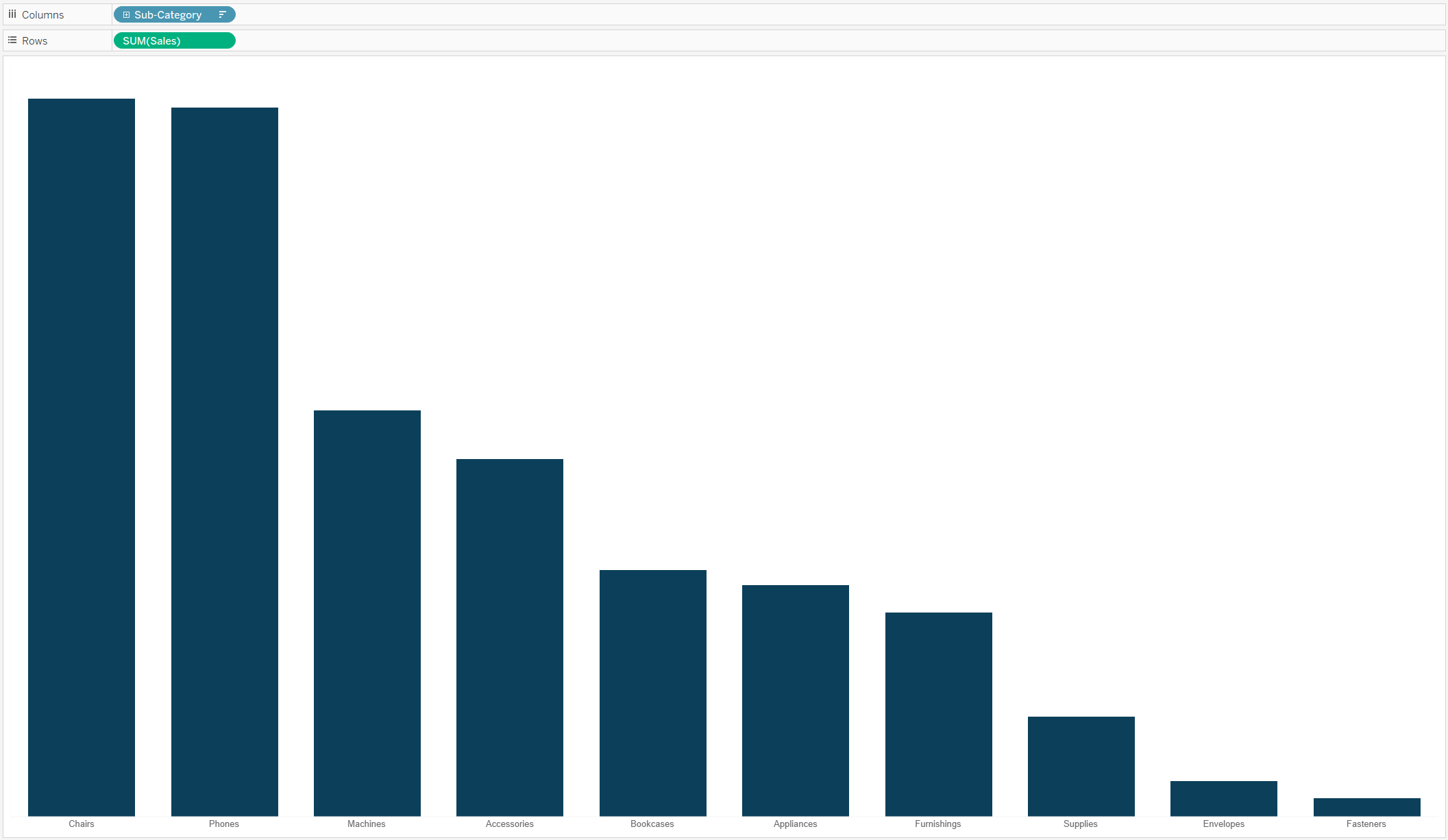

0. Start with a Bar Chart
1. Create this Label Offset Calculation
IF ( IF INDEX() % 2 = 1 THEN 'Odd' ELSE 'Even'
) = 'Odd' THEN
WINDOW_MAX(SUM([Sales])) / -25
ELSE
WINDOW_MAX(SUM([Sales])) / -11
END
The values -25 and -11 control the label offset. You can adjust these based on your data range and how spaced out you want the labels to be.
2. Create a dual axis

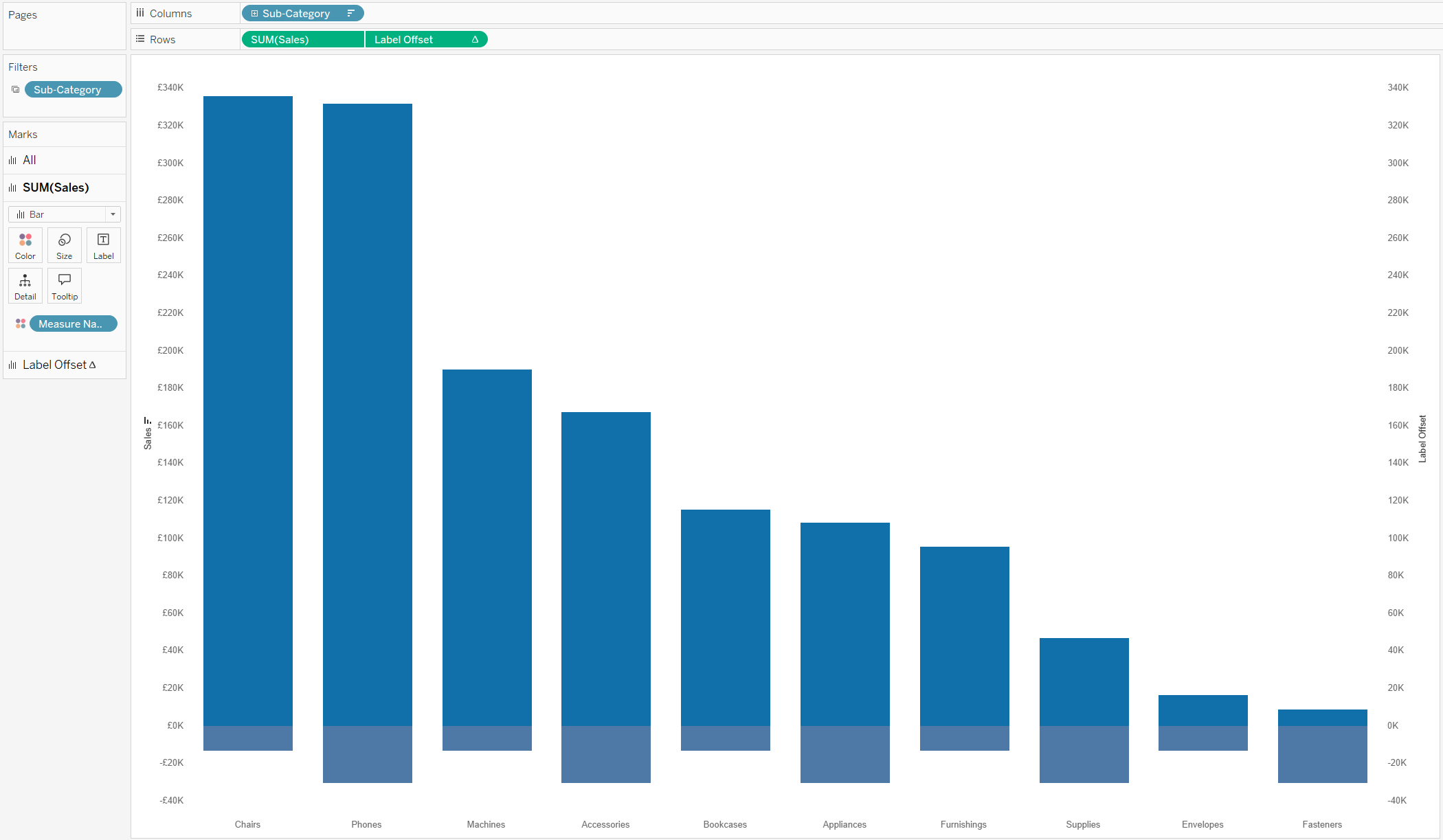

- Add the new offset calculation to the view as a second axis.
- Synchronise the axes.
3. Format your Label and Mark
- Reduce the size of the marks in the second axis.

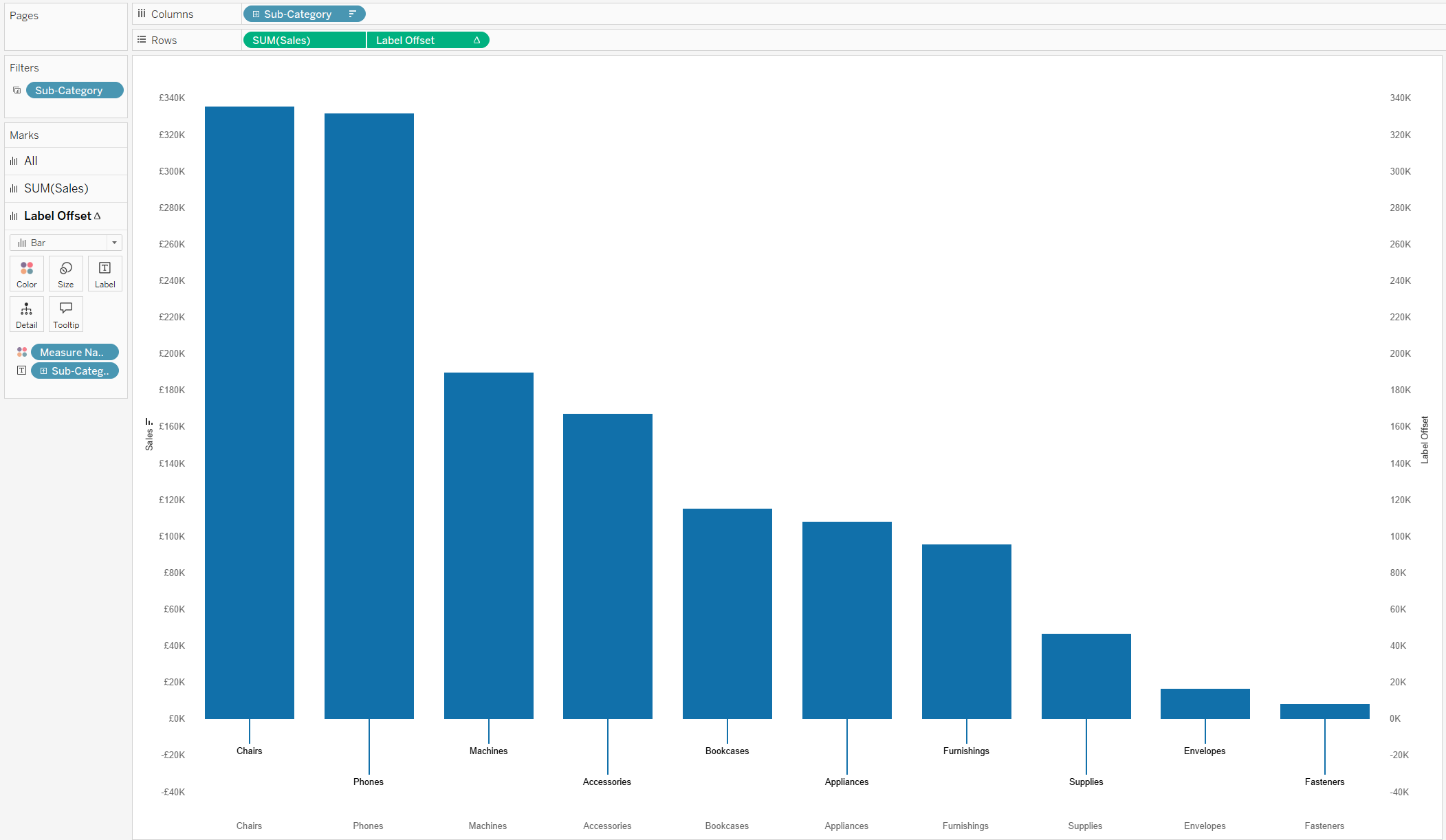

- Add your category to the Text mark of this second axis instead of the main one.
What you end up with

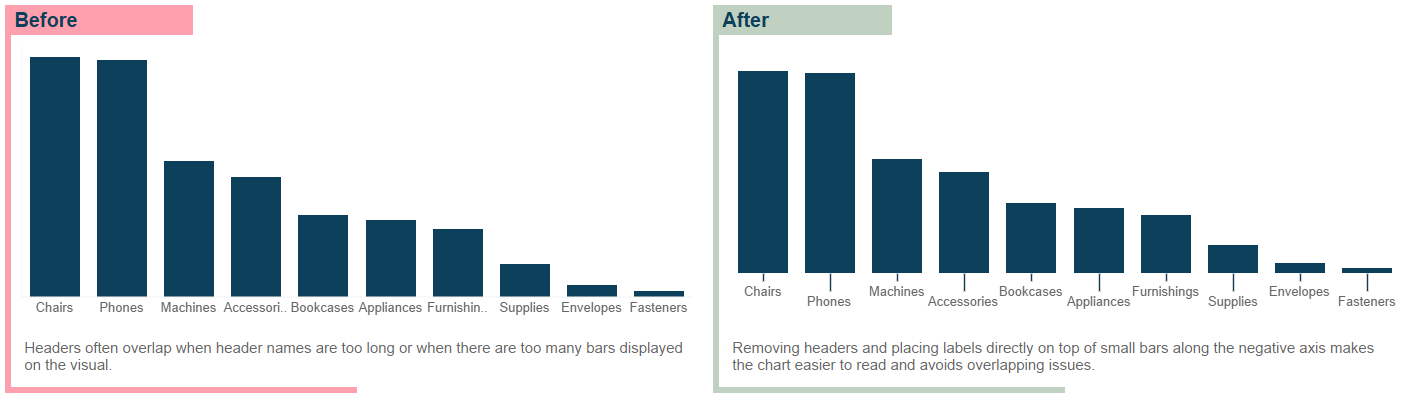

Labels that alternate in position slightly, reducing overlap and improving clarity. This technique is especially helpful on dashboards where space is limited, but labels still need to be visible. Here is a before and after
If you regularly work with dense bar charts, this is a useful trick to have in your Tableau toolkit.
