The internet contains an enormous amount of publicly available data, but much of it is designed for people to read rather than for analysis. Web scraping bridges that gap by extracting information from websites and transforming it into structured datasets that can be analysed, visualised, or integrated into business processes.
One of the biggest advantages of Alteryx is that it allows users to build web scraping workflows without writing extensive code. Using a combination of built-in tools, it is possible to download webpage content, extract the required information, clean the data, and prepare it for reporting—all within a visual workflow.
In this blog, I'll explain the fundamentals of web scraping in Alteryx before walking through a real example where I scraped information about books from a book catalogue website.
What is Web Scraping?
Web scraping is the process of automatically collecting information from websites. Instead of manually copying data into Excel or a database, a workflow retrieves the webpage and extracts the information you need.
Why Use Alteryx for Web Scraping?
Although languages like Python are popular for web scraping, Alteryx offers several advantages:
- Low-code approach with drag-and-drop tools
- Easy integration with Excel, SQL databases, and reporting tools
- Powerful data cleansing capabilities
- Visual workflows that are easy to understand and maintain
- Built-in parsing and transformation tools
Ethics and Legality
Before scraping anything, it's worth checking the target site's and terms of service. Not every website welcomes automated requests, and scraping at high volume can put unnecessary load on a site's servers. Responsible scraping means going slow, respecting rate limits, and sticking to publicly available data rather than anything behind a login or paywall. None of the tooling above cares about ethics for you — that part's still on the person building the workflow.
Understanding the Web Scraping Process
Regardless of the website, most scraping workflows follow the same stages.
1. Download the Webpage
The process begins by retrieving the HTML source of a webpage.
The Download Tool sends a request to the website and returns its HTML content.
Think of HTML as the webpage's blueprint—it contains all of the text, images, links, and other information displayed in a browser.
2. Clean the HTML
Raw HTML contains thousands of lines of code that are not useful for analysis.
Cleaning usually involves:
- Removing null values
- Removing unnecessary whitespace
- Standardising text
- Preparing the HTML for parsing
This makes later extraction much easier.
3. Parse the Required Information
Once the HTML is available, the next step is extracting only the information you need.
Regex Tool is particularly useful when the webpage follows a consistent structure.
4. Create a Structured Dataset
After parsing, the data is transformed into rows and columns.
This is where Alteryx really shines because the extracted information can immediately be:
- Filtered
- Sorted
- Joined with other datasets
Challenges in Web Scraping
Although web scraping sounds straightforward, there are several common challenges.
Dynamic Websites
Some websites load data using JavaScript after the page opens.
Since the Download Tool retrieves only the page source, dynamically generated content may not be available without additional techniques or APIs.
Changing Website Structure
If the website changes its HTML layout, Regex patterns or parsing logic may stop working.
Maintaining scraping workflows often involves updating extraction rules.
Case Study: Scraping a Book Listing Website

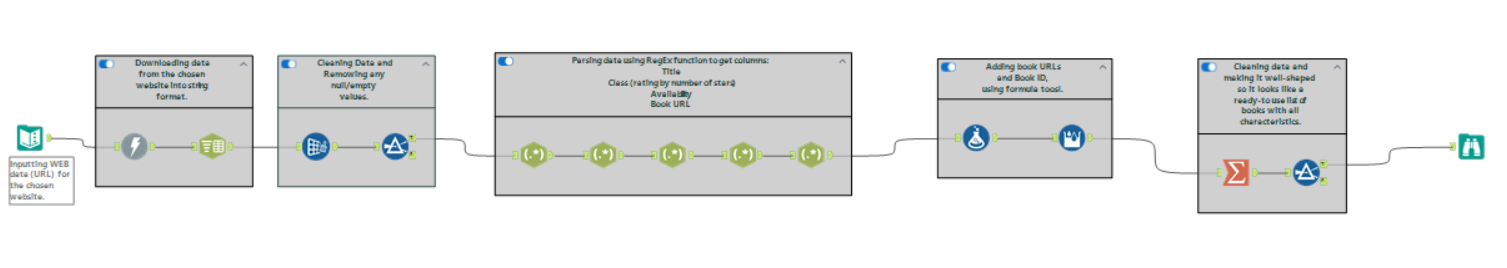

Here's how these ideas come together in a real Alteryx workflow — one built to collect structured data about books (price, title, star rating, availability, and product URL) from a books listing site. The workflow breaks into five clear stages:
1. Input and Download The workflow starts with a Text Input tool holding the target URL, feeding into a Download tool that pulls the raw HTML of the page into a string field, and a Select tool that trims the output down to the columns actually needed going forward.
2. Initial Cleaning Before any parsing happens, the raw HTML passes through a filtering step to drop empty or null rows, followed by a Data Cleansing tool to strip out stray whitespace and formatting junk — no point running regex against garbage.
3. Parsing with RegEx This is the heart of the workflow: five chained RegEx tools, each targeting one specific field —
- Book Title
- Class (the site encodes star rating as a CSS class, e.g. "Three" stars, so this gets pattern-matched out)
- Availability (in stock / out of stock)
- Book URL
Running these in sequence rather than trying to do it all in one giant expression keeps each step debuggable — if the title extraction breaks, you know exactly which RegEx tool to fix.
4. Enrichment with Formula Once the core fields are extracted, a Formula tool builds out the full book URL (since the site often only exposes relative paths) and a Record ID tool assigns each book a unique ID — useful for tracking, joining, or deduplicating later.
5. Final Shaping The last stage runs the data through a Summarize tool to consolidate and de-duplicate records, followed by one more pass of Data Cleansing to guarantee the output is genuinely ready to use — a clean, flat list of books with title, rating, availability, and URL as columns. A final Browse tool lets you inspect the finished dataset.
Final Thoughts
Whether you're new to web scraping or looking to expand your Alteryx toolkit, understanding how to download, parse, clean, and structure web data opens up many opportunities for automating data collection and creating richer analytical workflows. In this example, a simple workflow transformed raw HTML from a book catalogue website into a structured dataset containing titles, ratings, availability, and product links. The same principles can be applied to many other scenarios, such as monitoring product catalogues, collecting market intelligence, or automating routine data gathering tasks.Web scraping is an excellent way to automate the collection of publicly available information, and Alteryx provides a powerful visual environment for building repeatable data extraction workflows without extensive programming.
